Tp-Link LS1005G 5-Port Gigabit Switch [Tp-Link LiteWave]

LS1005G is latest gigabit network switch from Tp-Link in Pakistan. With its plug and Play setup it can be used directly to extend your network, without any special setup.


Tp-Link LS1005G

This TP-Link LiteWave Series Unmanaged Switch provides easy and affordable way to expand your wired network. It is easy to use and reliable. With this plug-and-play switch, you can expand your network connections to multiple devices instantly.

Non-blocking, 5 × 10/100/1000 Mbps ports enable instant transferring of large, bandwidth intensive files without interference. The LS1005G is fully compatible with networked devices such as computers, printers, webcams, IP Cams, IPTVs.

It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.

Main Specs:

Standards: IEEE 802.3i/802.3u/ 802.3ab/802.3x

Protocol: CSMA/CD

Interface: 5 × 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports

Network Cable: UTP category 3, 4, 5 cable (max 100m), EIA/TIA-568 100Ω STP (max 100m)

FAN Quantity: Fanless

Switching Capacity: 10-Gbps

Packet Forwarding Rate: 7.4-Mbps

Status LEDs: 1* Power, 5 * Link/Act

Packet Buffer Memory: 1.5-Mb

Jumbo Frame: 16KB

MAC Address Table: 2K

Power Supply: External power Adapter, Input: AC: 100-240V; 50/60Hz, Output: DC 5.0V 0.6A

Power Consumption: Maximum 3.7W at 5V DC

Transfer Method: Store and Forward

Certification: FCC, RoHS

Wall Mountable: Yes

TP-Link Switch Installation Guide:

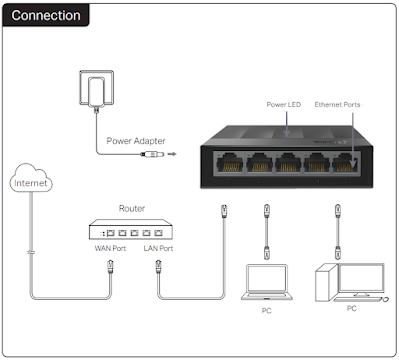

Tp-Link Switch Installation Connection

What's in the box ?

5-Port Gigabit Ethernet Switch

Power Adapter (5V0.6A)

Installation Guide

Packing:


Box Packing Front

Box Packing Back
