TL-WR820N is latest Wi-Fi router at Paktron. It features 300 Mbps wireless at 2.4 GHz, 5 dBi double antennas and IPv6 supported. Easy setup with Tether App.
Enhance wireless signal transmission and reception with TL-WR820N. Equipped with 5 dBi antennas and 2 high-speed Ethernet ports to provide reliable Wi-Fi and wired connections throughout medium-sized homes. Let the whole family enjoy fast Wi-Fi on every phone, tablet, and laptop PC.
Built-in tools make it easier to manage your home network, including scheduling internet access for specific devices, blocking content, or setting a priority level. The independent guest network helps secure private data from guests' access.
Four Modes in One Router:
1. Router Mode (Default)
Connect to the Ethernet to instantly create a private wireless network and share internet access to all your Wi-Fi devices
2. Access Point Mode
Transform your existing wired network to a wireless one
3. Range Extender Mode
Boost the existing wireless coverage in your room
4. WISP Mode
Connect to the ISP network wirelessly in areas without wired service
802.11n – Backward compatible with 802.11b/g products
Quality of Service – prioritizes devices to give faster performance where you need it
Access Control – Establish a whitelist or blacklist to allow or block certain devices from accessing the internet
Parental Controls – allow parents to establish regulated access for children
Intuitive Web UI– Ensures quick and simple installation without hassle
Fast Encryption – One-touch wireless security encryption with the WPS button
Hassle-free Management with Tether App – Network management is made easy with the TP-Link Tether App, available on any Android or iOS device
Wireless N Speed – 300 Mbps Wi-Fi speed meets your daily internet needs
High-speed Ethernet Ports: Provide reliable Wi-Fi and wired connections
Hardware Specs:
Ethernet Ports: 2 * 10/100 Mbps LAN Ports, 1 * 10/100 Mbps WAN Port
Buttons: WPS/Reset Button
Antennas: 2 Fixed Omni Directional Antennas
External Power Supply: 5VDC / 0.6A
Dimensions (W x D x H): 4.5 x 4.2 x 0.96 in. (115 x 106.7 x 24.3 mm)
Wireless Specs:
Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency: 2.412~2.472 GHz
Signal Rate:
11n: Up to 300 Mbps (dynamic)
11g: Up to 54 Mbps (dynamic)
11b: Up to 11 Mbps (dynamic)
Reception Sensitivity:
270M: -70dBm@10% PER
130M: -74dBm@10% PER
108M: -74dBm@10% PER
54M: -77dBm@10% PER
11M: -87dBm@8% PER
6M: -90dBm@10% PER
1M: -98dBm@8% PER
Wireless Function: Enable/Disable Wireless Radio, WMM, Wireless Statistics
Wireless Security: WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Software Specs:
Operation Modes: Wireless Router, Range Extender, Access Point, WISP
WAN Type: Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP(Dual Access)
DHCP: DHCP Server, DHCP Client List, Address Reservation
Quality of Service: WMM, Bandwidth Control
NAT Forwarding: Port Forwarding, Port Triggering, UPnP, DMZ
Dynamic DNS: DynDns, NO-IP
Firewall Security: SPI Firewall, IP and MAC Address Binding
Protocols: IPv4, IPv6
Management: Parental Controls, Access Control, Local Management, Remote Management
Guest Network: 2.4 GHz Guest Network
Environment:
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

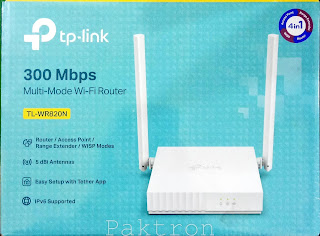

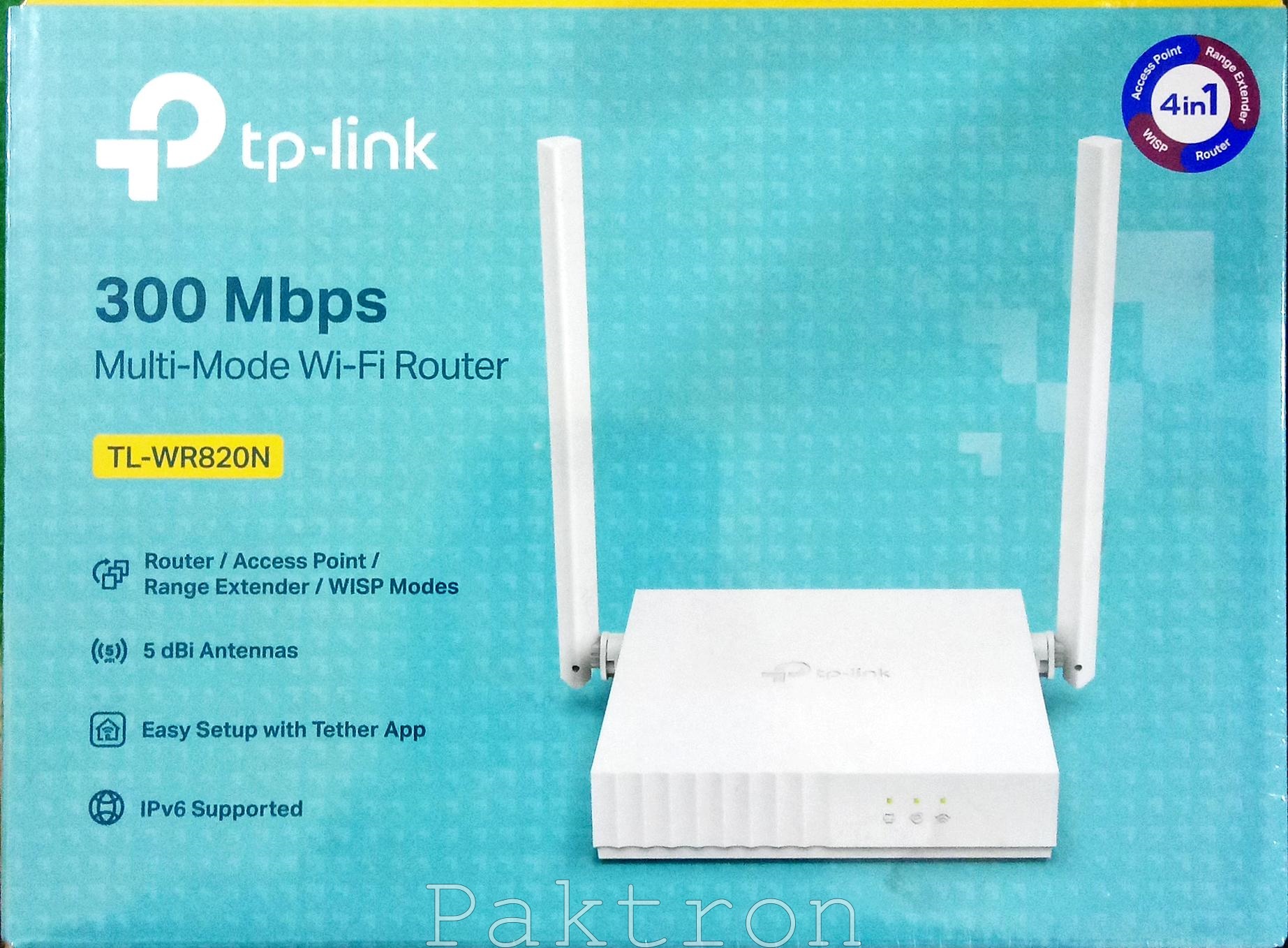

What's in the Box ?
Wireless Router TL-WR820N
Power Adapter
RJ-45 Ethernet Cable
Quick Installation Guide
Packing:
Tp-Link Router Price in Pakistan
You can contact us for latest Price of Tp-Link products in Pakistan
Installation and Configuration of Networks:
Our Network Installation, Maintenance and Repair services are available in Rawalpindi and Islamabad
This Router can be used with or compatible with PTCL, Nayatel and all other internet services available in Pakistan. Also used for CCTV Cameras, TV Set-Top-Box and other network devices.
